Mel 20 Alpha Persi Cluster

Processed Mel 20

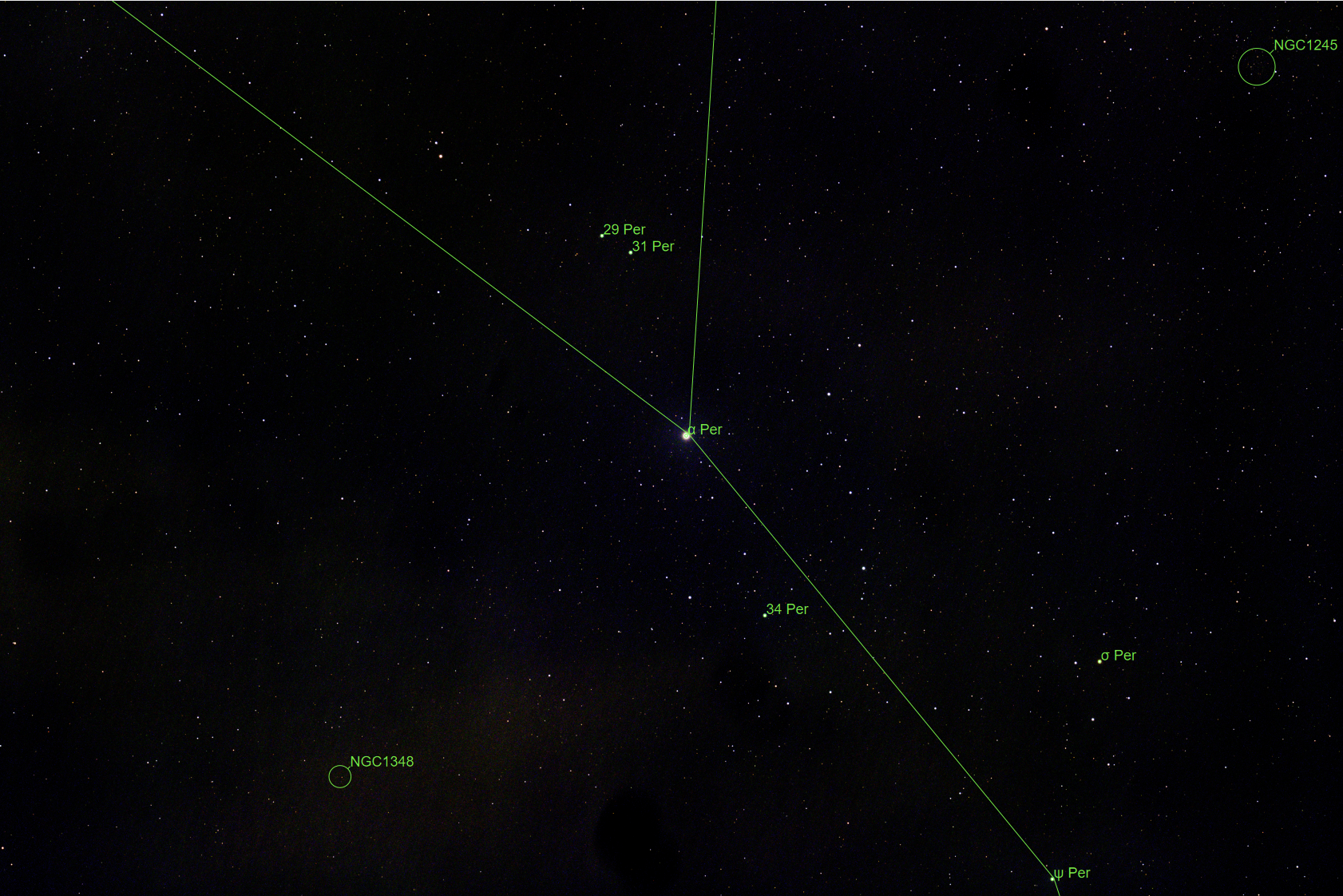

Plate Solve from Siril
Sub example X.X

Equipment

Camera : Fujiflim X-T30
Telescope/lens : SVBONY SV545 200mm f/4.5
Mount : Skywatcher Star Adventurer GTI GOTO



Camera setting

Shutter speed : 5 sec.
ISO : 800
White balance : Daylight
Drive mode : Interval shooting



Integration time

14 Min 40 Sec
176 Frames



Moon illumination

0%



Software

Rawtherapee
  1. Demosaic
    • Method : 3 Pass + Fast
  2. White balance
    • Method : Camera
  3. Color management
    • Working profile : Prophoto
    • Input profile : Auto-matched
    • Output profile : Linear Rec.2020
  4. Exposure
    • Highlight reconstruction : Color Propagation
    • Exposure Compensation : -0.2
  5. Output
    • File format : 16-bit TIFF
Siril
  1. Registration method : Average stacking with rejection
  2. Background Extracton
  3. Generalised hyperbolic Stretch Transformations
  4. Export with Linear Rec2020 RGB
Affinity Photo 2
  1. Vibrant Adjustment
